A Vaccine Carrier is a compact, insulated, and highly portable container used to safely

transport vaccines and biologicals in field or outreach settings. These specific capacities —

0.90 L, 1.67 L, and 2.90 L — are ideal for short-duration immunization programs, veterinary

fieldwork, and doorstep healthcare delivery, where lightweight handling and cold-chain

compliance are critical.

Parameter 0.90 L 1.67 L 2.90 L

Vaccine Storage

Volume

~0.15–0.25 L ~0.4–0.6 L ~0.9–1.2 L

Ice Pack Capacity 2 × 0.4L (standard) 2–3 × 0.4L 4 × 0.4L

Cold Life (at 43°C) 12–16 hours 16–24 hours 24–36 hours

External

Dimensions

Approx. 18 x 18 x 22 cm Approx. 22 x 20 x

24 cm

Approx. 25 x 23 x

27 cm

Weight (empty) ~1.2 kg ~1.8 kg ~2.5 kg

Lid Type Hinged with rubber gasket Hinged with lock Snap-fit with

silicone seal

WHO PQS

Certified

Optional in all sizes Optional in all

sizes

Available

Handle Type Carry strap or fixed top

handle for all sizes

Size Use Case

0.90 L Single-day visits, small-scale outreach (1–2 vaccines)

1.67 L Community health campaigns, remote field delivery

2.90 L Veterinary immunizations, large household or outreach sessions

•   Standard (Manual) – With strap, no internal rack

•   Rack-fitted – Fixed or removable vial rack

•   WHO PQS-Approved – Cold chain compliance for global programs

•   Label-Ready – For vaccine type/date tagging

•   Outer: High-Impact HDPE (shockproof, weather-resistant)

•   Insulation: PU Foam (35–40 mm thick)

•   Gasket: Silicone rubber for tight sealing

•   Cold Chain Transport

•   Medical & Veterinary Vaccine Carriers

•   Field Health Equipment

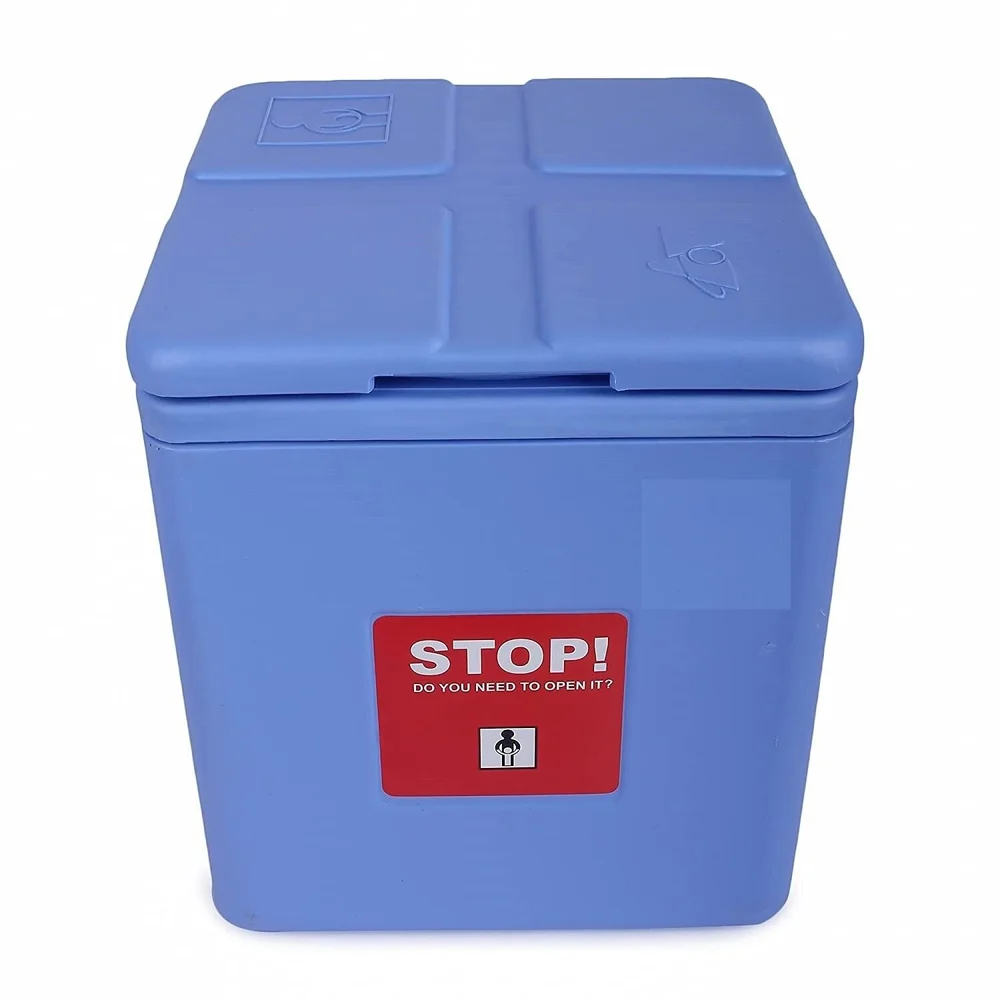

•   Compact, cuboid-shaped with hinged lid

•   Inner compartment with optional vial holders

•   Marked space for ice packs

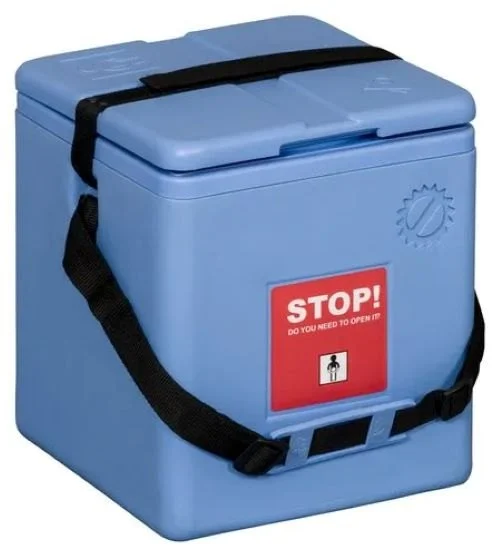

•   Shoulder strap or moulded handle for portability

•   0.90 L: Mobile healthcare, quick-response vaccine drops

•   1.67 L: Daily outreach camps, nurse or vet field rounds

•   2.90 L: Larger community immunization and rural vet services

•   Compact and ultra-portable

•   Durable and resistant to heat/splash

•   Maintains 2°C to 8°C for up to 36 hours (2.90 L)

•   Ideal for emergency kits and field mobility

•   Customizable with labels, tracking tags, and inner racks

•   Limited storage space (only for short missions)

•   Requires pre-conditioning of ice packs

•   Temperature control limited to ambient conditions

•   Not suitable for frozen vaccines or samples requiring -20°C

•   Use WHO-approved ice packs for reliable cold retention

•   Minimize lid opening during use

•   Monitor internal temperature using freeze indicators or data loggers

•   Always disinfect after each use

•   HS Code: 9018.39

•   HSN Code (India): 9018.39.00 – Vaccine carrier, insulated medical containers

•   Wipe external body with mild soap and water

•   Disinfect inner chamber with 70% alcohol or hypochlorite

•   Air-dry thoroughly before storage

•   Do not autoclave or expose to direct flame

Veterinary Application

•   Portable use in rural livestock vaccination programs

•  Transport of FMD, rabies, anthrax, PPR vaccines

•   Suitable for on-field vaccine delivery in cattle, poultry, goats, and pets

•   2.90 L model ideal for full-day immunization runs in livestock health drives

Human Application

•   Used in national immunization campaigns (measles, polio, tetanus, etc.)

•   Suitable for COVID-19 booster delivery in remote areas

•   Ideal for doorstep child immunization & home care

•   Used by PHC/CHC staff, nurses, and cold-chain assistants

Q1: How long do these vaccine carriers keep vaccines cool?

A1: Between 12 to 36 hours depending on size — 0.90L (~12–16 hrs), 1.67L (~24 hrs), 2.90L

(~36 hrs).

Q2: Are the carriers WHO certified?

A2: Select models, especially 1.67L and 2.90L, are available with WHO PQS certification.

Q3: Can I use gel packs instead of ice packs?

A3: Yes, but only WHO-recommended cold packs should be used for accurate performance.

Q4: Is 0.90L carrier sufficient for a full day of vaccines?

A4: Only for very small quantity or limited-use scenarios — otherwise, 1.67L or 2.90L is

recommended.

Q5: Can I use this for animal and human vaccines both?

A5: Yes! These are multipurpose carriers suitable for human immunization and veterinary

vaccine field delivery.
