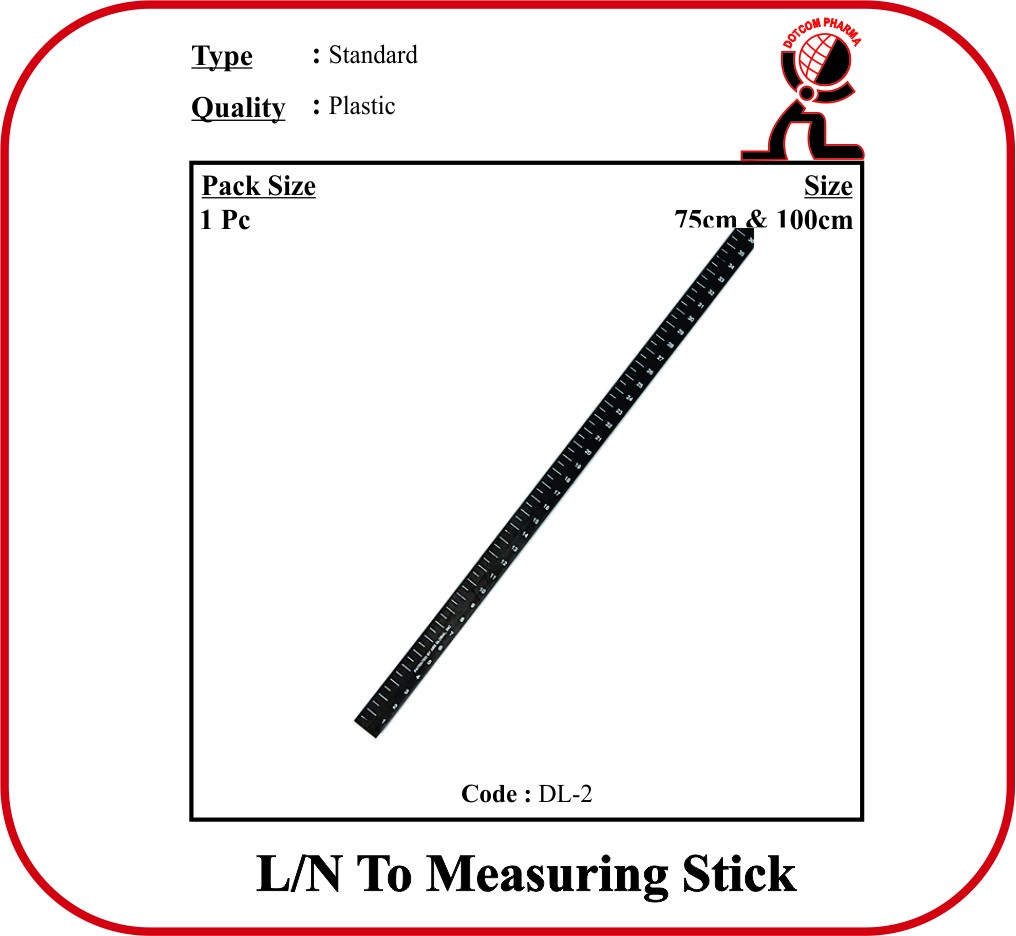

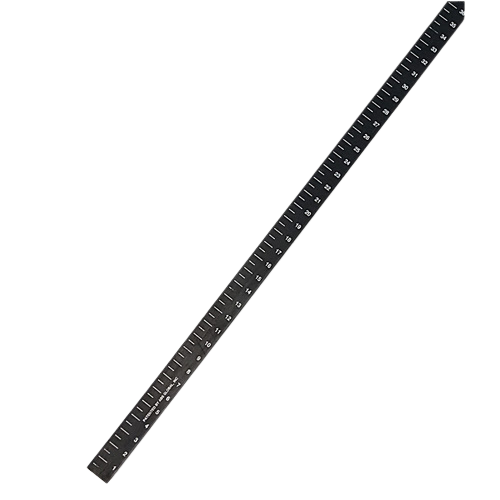

An LN2 Measuring Stick is a specialized instrument designed to measure the level or quantity of liquid nitrogen (LN2) in storage tanks, cryogenic containers, or transport vessels. Liquid nitrogen, which is stored at extremely low temperatures (around -196°C or -321°F), is commonly used in medical, industrial, and scientific applications, including cryogenics, preservation, and freezing.

•  Material: Made from stainless steel or aluminium, both of which are corrosion-resistant and can handle extreme cold without becoming brittle.

•  Length: Typically ranges from 30 cm to 1 meter, depending on the size of the container being measured.

•  Insulation: The handle is often insulated with a protective grip or cover to prevent the user from coming into contact with extremely cold temperatures.

•  Graduated Scale: Some sticks are graduated, showing liquid nitrogen level in percentage or litre scale. Others might simply give a visual indication of the LN2 level.

•  Small (30 cm - 50 cm): For smaller containers such as cryovials or small cryogenic tanks.

•  Medium (60 cm - 80 cm): Used for medium-sized tanks or vessels.

•  Large (1 meter): Designed for larger cryogenic storage tanks used in industrial or laboratory applications.

•  Straight Stick: The most common form of the LN2 measuring stick, typically long and cylindrical, with a flat or pointed tip for immersion in the liquid nitrogen.

•  Flexible or Coil Design: Some measuring sticks are designed with a flexible coil to reach difficult-to-access areas or for flexibility in use.

•  Basic Liquid Nitrogen Stick: The standard measuring stick, which uses a simple thermal probe to determine the level of the liquid nitrogen.

•  Digital LN2 Measuring Stick: A more advanced model with a digital display to give a precise reading of the LN2 level and temperature.

•  Ultrasonic Liquid Nitrogen Measuring Stick: A more advanced version that uses ultrasonic waves to measure the liquid nitrogen height without physically contacting the liquid.

•  Stainless Steel: Offers durability, resistance to low temperatures, and is easy to clean.

•  Aluminium: Lightweight but still resistant to cryogenic temperatures.

•  Thermal Insulation Coating: The handle is often coated with thermal insulation (e.g., rubber or foam) to keep it safe for handling and prevent cold burn

•  Cryogenic Instruments

•  Temperature Measurement Tools

•  Storage Tank Accessories

•  Laboratory Equipment

• Reusable: LN2 measuring sticks are typically reusable, making them ideal for frequent use in laboratory or industrial settings.

•  Disposable (Rare): In some cases, disposable single-use LN2 measuring sticks may be available for specialized applications

•  Monitoring Liquid Nitrogen Levels: The primary purpose is to measure the amount of liquid nitrogen in cryogenic storage tanks, ensuring that levels are maintained for storage or preservation.

•  Cryopreservation: Often used in biological and medical settings, such as cell preservation, sperm storage, or tissue freezing.

•  Industrial Applications: Used in industries where liquid nitrogen is used as a coolant or in freezing processes.

•  Laboratory and Research: Used in scientific labs to monitor the nitrogen levels in containers during experiments or material preservation.

•  Accurate Readings: Provides a reliable and precise way to measure the liquid nitrogen level in storage tanks.

•  Durable: Made from materials that can withstand extreme cold and harsh conditions, such as stainless steel.

•  Easy to Use: Typically a simple design, making it easy to use with minimal training.

•  Prevents Overflows: By regularly checking the levels, users can avoid overflows or low nitrogen levels, which could compromise the integrity of stored materials.

•  Fragility (Glass or Thin Designs): Some models, especially glass or thin-walled designs, can be easily broken if dropped or mishandled.

•  Temperature Sensitivity: The measuring stick itself can become extremely cold, posing a risk of frostbite if handled improperly.

•  Limited to Cryogenic Containers: Primarily designed for cryogenic tanks, making it unsuitable for use in regular liquid containers.

•  Wear Protective Gear: Always wear insulated gloves and safety goggles when handling the LN2 measuring stick to avoid cold burns or frostbite.

•  Handle with Care: Be cautious when inserting the measuring stick into liquid nitrogen; ensure that it doesn’t hit the tank walls forcefully, which may cause damage or breakage.

•  Storage: Store the stick in a dry, insulated area after use to maintain its longevity and to prevent condensation from forming inside the stick.

•  HS Code: 9027 (Instruments and apparatus for physical or chemical analysis)

•  HSN Code: 9027.90 (For measuring instruments, including liquid nitrogen level indicators)

•  Proper Handling: When using, always ensure that the stick is immersed slowly into the liquid nitrogen to avoid sudden temperature changes.

•  Use Insulated Gloves: To avoid cold burns, always handle the stick by its insulated handle or with protective gloves.

•               Avoid Dropping: Glass versions of the measuring stick can easily shatter if dropped in extremely cold conditions.

•  Cleaning: After use, rinse the LN2 stick with warm water and let it air dry.

•  Sterilization: Use an autoclave or chemical sterilization for regular cleaning, especially in medical or laboratory environments.

•  Avoid Freezing: Do not store in extremely cold environments when not in use, as this could cause the internal materials to crack or break.

•  Veterinary Cryopreservation: Used in veterinary practices for sperm storage, embryo preservation, and other biological material storage in liquid nitrogen.

•  Animal Research: Used to monitor liquid nitrogen levels in cryopreservation tanks for animals used in research and breeding.

•  Medical Cryopreservation: Used in medical labs and fertility clinics for sperm, egg, and embryo storage in liquid nitrogen.

•  Tissue Preservation: Often used to monitor liquid nitrogen levels during the preservation of human tissues or stem cells.

Q1: What is a Liquid Nitrogen (LN2) measuring stick?
 A: It’s a specialized instrument used to measure the liquid nitrogen level inside cryogenic tanks, ensuring proper storage and preservation conditions for biological or industrial materials.

Q2: How does a liquid nitrogen measuring stick work?

A: It works by detecting the temperature difference between the liquid and gas phases of nitrogen, which correlates to the specific gravity or level of the liquid nitrogen.

Q3: Can I use a digital LN2 measuring stick for accurate readings?

A: Yes, digital models provide precise, easy-to-read measurements of the liquid nitrogen level, often with a digital display for enhanced accuracy.

Q4: How do I handle the LN2 measuring stick safely?

A: Always wear insulated gloves, avoid direct contact with liquid nitrogen, and handle the measuring stick gently to avoid freezing or breakage.
